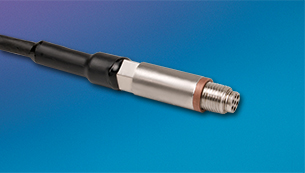

Miniature Automotive 5Vdc Output Pressure Transducer Inlet Pressure Transducer

The ETL-184 Series results in a highly stable, reliable, and rugged instrument with all the advantages of microcircuitry: significant miniaturization, excellent repeatability, low power consumption, etc. The miniaturization process also yields a marked increase in the natural frequencies of the transducers. It is small, versatile, and requires no additional signal conditioning.


  • High Bandwidth With Integrated Amplifier
  • Excellent Long Term Stability Coupled With High Accuracy
  • Patented Leadless Technology VIS®
  • Robust Construction


  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
  • Temperature Range
    • -65°F to +275°F (-55°C to 135°C)
    • -65°F to +525°F (-55°C to 273°C)

    See data sheets for specific range.

  • Pressure Range
    • Low Pressure (0-500 psi)
  • Excitation
    • 12 +/-4VDC
    • 28 +/- 4VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Absolute
  • Output
    • Amplified Voltage Output
  • Media
    • All nonconductive, noncorrosive fluids
