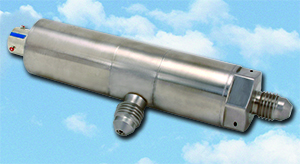

Aircraft Differential Pressure Transducer


  • Developed For Use With High Line Pressure Compared To Low Differential Pressure
  • Ideal For Measuring Pressure Drop Across Filters To Monitor Filter Clogging
  • High Natural Frequencies
  • Unprecedented Stability And Reliability To High Temperatures (Ruggedized Internal Construction)
  • Leakproof, All Welded Construction (No Leak After Exposure To 2000°F 1093°C)
  • Utmost In Safety (Secondary Containment Of Pressure Media)
  • Fully Qualified (Passed Extensive Environmental Tests, RTCA/DO-160F)
  • FAA Manufacturer’s Maintenance Facility


  • Application
    • Aerospace OEM
    • Flight Test
    • General Test & Measurement
  • Temperature Range
    • -65°F to +275°F (-55°C to 135°C)
    • -65°F to +525°F (-55°C to 273°C)

    See data sheets for specific range.

  • Pressure Range
    • High Pressure (above 500 psi)
    • Low Pressure (0-500 psi)
  • Excitation
    • 10VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Differential
  • Output
    • Unamplified Millivolt Output
  • Media
    • All nonconductive, noncorrosive fluids
    • Fluids compatible with stainless steel
