Ratiometric Output Pressure Transducer

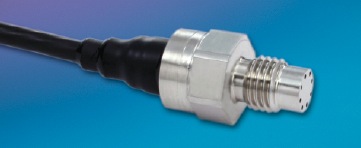

The ETM-435-375 is a miniature threaded pressure transducer. The hexagonal head and o-ring seal make it easy to mount and simple to apply. The ETM-435-375 utilizes a flush metal diaphragm as a force collector. A solid state piezoresistive sensing element is located immediately behind this metal diaphragm which is protected by a metal screen. Force transfer is accomplished via non-compressible silicone oil. This sensing sub assembly is welded to a stainless steel body. Incorporation of a Kulite proprietary electronics module within the main body of this product allows for operation from a ratiometric power supply of 5 VDC. Standard output is a stable, low noise 0.5 to 4.5 VDC signal.


  • Ratiometric Amplified Output
  • Hybrid Microelectronic Amplifier
  • Flush Diaphragm
  • All Welded Construction
  • Secondary Containment On Absolute And Sealed Gage Units
  • 3/8-24 UNJF or M10 X 1 Thread
  • Designed For Industrial and Automotive Applications
  • Intrinsically Safe Applications Available (i.e. IS-ETM-435(X)-375)


  • Application
    • Automotive Test/Motorsport
    • Flight Test
    • General Test & Measurement
    • Industrial/Process
  • Temperature Range
    • -65°F to +275°F (-55°C to 135°C)

    See data sheets for specific range.

  • Pressure Range
    • High Pressure (above 500 psi)
    • Low Pressure (0-500 psi)
  • Excitation
    • 5VDC
  • Transducer Style
    • Threaded
  • Operational Mode
    • Absolute
    • Sealed Gage
  • Media
    • All nonconductive, noncorrosive fluids
    • Fluids compatible with stainless steel
