ETQ-500

5 Vdc Output Pressure Transducer

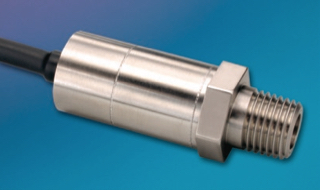

ETQ-500 Series transducers are miniature, threaded instruments. The sensing sub-assembly is protected from mechanical damage by a solid screen which has been shown to have minimal influence on the frequency response of the sensor. Incorporation of a Kulite proprietary electronics module within the main body of this product allows for operation from an unregulated power supply ranging from 12 ± 4VDC or 28 ± 4VDC with reverse polarity protection available upon request.

Features

  • 5 VDC Output
  • Hybrid Microelectronic Regulator-Amplifier
  • All Welded Construction
  • Excellent Stability and Reliability
  • Secondary Containment On Absolute And Sealed Gage Units
  • Silicon on Silicon Integrated Sensor VIS®
